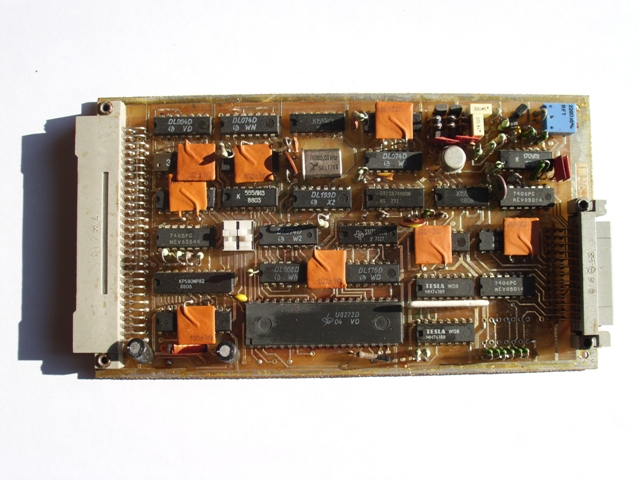

E1625 FDC3
Floppystecker
| Pin | A | B | C |
|---|---|---|---|
| 1 | n.C. | GND | /SD |
| 2 | n.C. | GND | /LC |
| 3 | n.C. | GND | /ST |
| 4 | /MO0 | GND | /FR |
| 5 | /MO1 | GND | /HDSE |
| 6 | /MO2 | GND | /HL |
| 7 | /MO3 | GND | /WE |
| 8 | /WD | GND | /RD |
| 9 | /IX | GND | /RDY |
| 10 | /DS0 | GND | /T0 |
| 11 | /DS1 | GND | /FLT |
| 12 | /DS2 | GND | /2S |
| 13 | /DS3 | GND | /WP |
Sondersignale
| Name | Funktion | Richtung | Info |
|---|---|---|---|
| LC | Low Current | zum LW | Schreibstrom Regelung |
| HDSE | Head Select | zum LW | |
| 2S | Two Side | vom LW |
