Inhaltsverzeichnis
Epromer mit K0420
Nachbau der Baugruppe K0420
Bauunterlagen
Stückliste
| Bezeichnung | Anzahl | Typ | Wert | |
|---|---|---|---|---|
| A1 | 1 | IC | D193 | |
| A2 | 2 | IC | D100 | |
| A3 | 1 | IC | D103 | |
| A4 | 3 | IC | DS8216 | |
| A5 | 1 | IC | D126 | |
| A6 | 1 | IC | D204 | |
| A7 | 1 | IC | B110 | |
| A8 | 4 | IC | DS8212 | |
| A9 | 3 | IC | DS8205 | |
| A10 | 1 | IC | D120 | |
| V1 | 4 | Transistor | ||
| V2 | 2 | Transistor | ||
| V3 | 2 | Transistor | ||
| V4 | 6 | Diode | ||
| V5 | 1 | Z-Diode | ||
| V6 | 3 | Diode | ||
| R1 | 10 | Widerstand | ||
| R2 | 4 | Widerstand | ||
| R3 | 2 | Widerstand | ||
| R4 | 2 | Widerstand | ||
| R5 | 2 | Widerstand | ||
| R6 | 2 | Widerstand | ||
| R7 | 1 | Widerstand | ||
| R8 | 1 | Widerstand | ||
| R9 | 1 | Widerstand | ||
| R10 | 1 | Widerstand | ||
| R11 | 1 | Widerstand | ||
| C1 | 16 | Kondesator | ||
| C2 | 5 | Elko | ||
| C3 | 4 | Elko | ||
| C4 | 3 | Elko | ||
| C5 | 1 | Kondesator | ||
| C6 | 1 | Kondesator | ||
| S1 | 1 | Steckverbinder | 2*29 EFS Stecker ac | |
| S2 | 1 | Steckverbinder | 2*13 EFS Stecker ac | |
| RRS | 3 | Relais | ||
Adressbelegungen
| Adresse | Richtung | Funktion |
|---|---|---|
| E8h | Ausgabe | Datenregister |
| E9h | Ausgabe | Kommandoregister & A8..A9 |
| EAh | Ausgabe | Adressregister A0..A7 |
| EBh | Eingabe | Datenregister |
Bauunterlagen

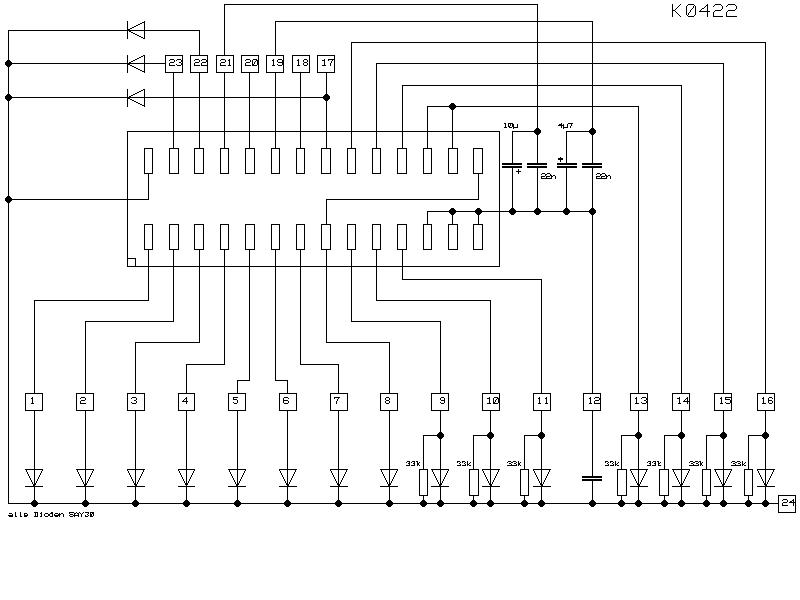

Fassung
